GR-A013U GNSSレシーバーUSB

新商品

¥ 11,770 税込

商品コード:

数量


  • 詳細[ GR-A013U Web Manual ]

  • SiRF starV(CSRG05e)52ch GPS/QZSS/GLONASS -165dBmトラッキング -146dBm捕捉時

  • 低消費電力 48mA DC5.0V

  • 精度 水平 <2.5m (単独測位)

  • TTFF <1sec/<30sec/<35sec HOT/WARM/COLD

  • IPX7準拠 防水

  • 底部マグネット

  • 出力 NMEA V4.00: (デフォルト9600)/OSP: 115200bps N,8,1;GGA, GSA, GSV, RMC, VTG

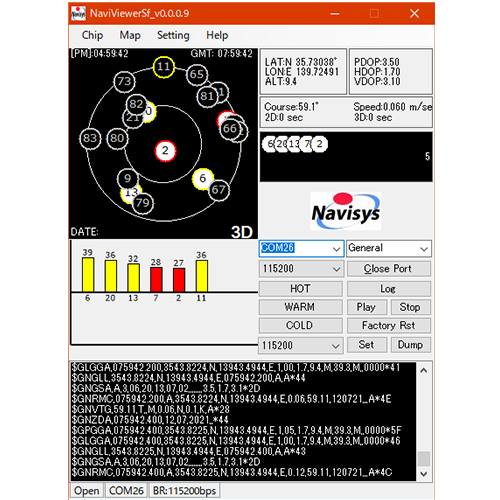

  • USB PL-2303 / NaviViewerSf ダウンロード



出力データ
$GPGGA,012020.000,3543.8912,N,13944.3901,E,1,06,1.2,40.3,M,39.3,M,,0000*65
$GLGGA,012020.000,3543.8912,N,13944.3901,E,1,04,1.2,40.3,M,39.3,M,,0000*7B
$GNGSA,A,3,20,30,01,32,19,11,,,,,,,2.2,1.2,1.9*2E
$GNGSA,A,3,74,84,69,75,,,,,,,,,2.2,1.2,1.9*25
$GPGSV,4,1,13,20,55,166,26,30,13,232,24,01,66,017,21,32,50,078,17*74
$GPGSV,4,2,13,19,21,096,16,11,51,052,15,04,56,037,04,07,01,204,15*7A
$GPGSV,4,3,13,57,66,190,,28,59,293,,17,27,304,,03,13,112,*7F
$GPGSV,4,4,13,06,00,246,*4D
$GLGSV,3,1,10,74,20,222,34,84,48,035,16,69,47,078,15,75,32,280,14*68
$GLGSV,3,2,10,70,32,154,16,76,09,332,13,85,40,321,04,68,14,029,07*66
$GLGSV,3,3,10,83,12,081,,86,01,288,*68
$GNRMC,012020.000,A,3543.8912,N,13944.3901,E,0.69,178.87,281014,,,A*72
$GPGGA,012021.000,3543.8904,N,13944.3904,E,1,06,1.2,40.2,M,39.3,M,,0000*67
$GLGGA,012021.000,3543.8904,N,13944.3904,E,1,04,1.2,40.2,M,39.3,M,,0000*79
$GNGSA,A,3,20,30,01,19,32,11,,,,,,,2.2,1.2,1.9*2E
$GNGSA,A,3,74,84,69,75,,,,,,,,,2.2,1.2,1.9*25
$GNRMC,012021.000,A,3543.8904,N,13944.3904,E,1.24,171.79,281014,,,A*71
$GPGGA,012022.000,3543.8896,N,13944.3909,E,1,06,1.4,40.1,M,39.3,M,,0000*66
