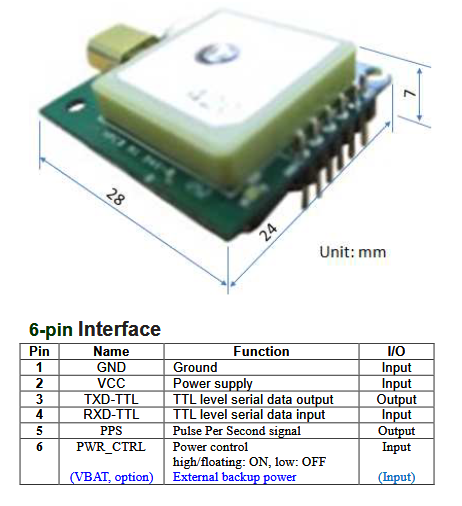

GM-428A SiRFstarIV TTL 1pps w/MCX 外部アンテナ端子
¥ 4,620 税込
商品コード:
Receiver Type 48-channel, L1 frequency, C/A code
Horizontal Position Accuracy < 2.5m (Autonomous) < 2.0m (WAAS) (50% 24hr static, -130dBm) Velocity Accuracy <0.1 m/s (speed) <0.01° (heading) (50%@30m/s)
Time To First Fix Hot ・ Warm ・Cold Autonomous <1sec <35sec <35sec (50% -130dBm)
Sensitivity (Autonomous) -147dBm (acquisition) -163dBm (tracking)
Max. Update Rate 5Hz Max.
Altitude <18,000 m or 60,000 ft Max.
Velocity <1,852 km/hr or 1,000 knots
Protocol Support NMEA v3.00, OSP
Default: NMEA 4800bps N,8,1; GGA,GSA,RMC@1Hz, GSV@1/5HzSBAS Support WAAS, EGNOS, MSAS, QZSS, GAGAN
Dynamics <4g
