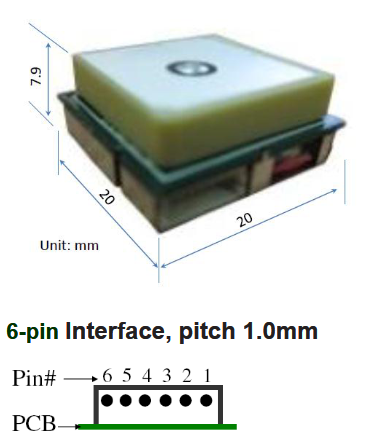

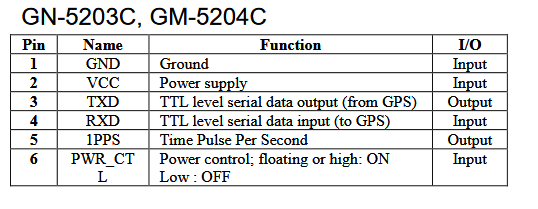

GN-5203C MT3333 TTL
¥ 4,400 税込
商品コード：
GNSS Chipset: MT3333
GPS/QZSS:L1 1575.42MHz
GLONASS(GN-5203):L1OF 1598.0625~1605.375MHz
Tracking:33/acquisition: 99
Horizontal Position < 3.0m (Autonomous)< 2.5m (WAAS)
Accuracy(50% 24hr static, -130dBm)
Velocity Accuracy<0.1 m/s (speed, w/o SBAS)<0.05 m/s(speed w/ SBAS)(50%@30m/s)
Timing Accuracy±10ns RMS (1PPS output)
Time To First Fix
Hotstart <1sec
Warmstart 24sec
Coldstart 28sec
再補足(50% -130dBm)
Sensitivity(Autonomous)-148dBm (acquisition)-165dBm (tracking)
Update Rate+Up to 10Hz, default 1HzMax.
Altitude+<18,000 mMax.
Velocity<1,852 km/hr
Datum+WGS-84(default)
Protocol Support
NMEA 0183 V4.1,
MTKNMEA4800/9600(default)/38400/115200bps
N,8,1(No parity, 8 data bits, 1 stop bit);
Default: GGA, GSA, RMC, VTG@1Hz, GSV@1/5Hz, GLL, ZDA@0Hz
SBAS SupportWAAS, EGNOS, MSAS, GAGAN
Dynamics<4g
Operating temperature-40 ~ 85°C
exceptbattery: -20~60°C
Storage temperature-40 ~ 85°C
exceptbattery: -40~60°C
Vibration5Hz to 500Hz, 5g
ShockHalf sine 30g/11ms
